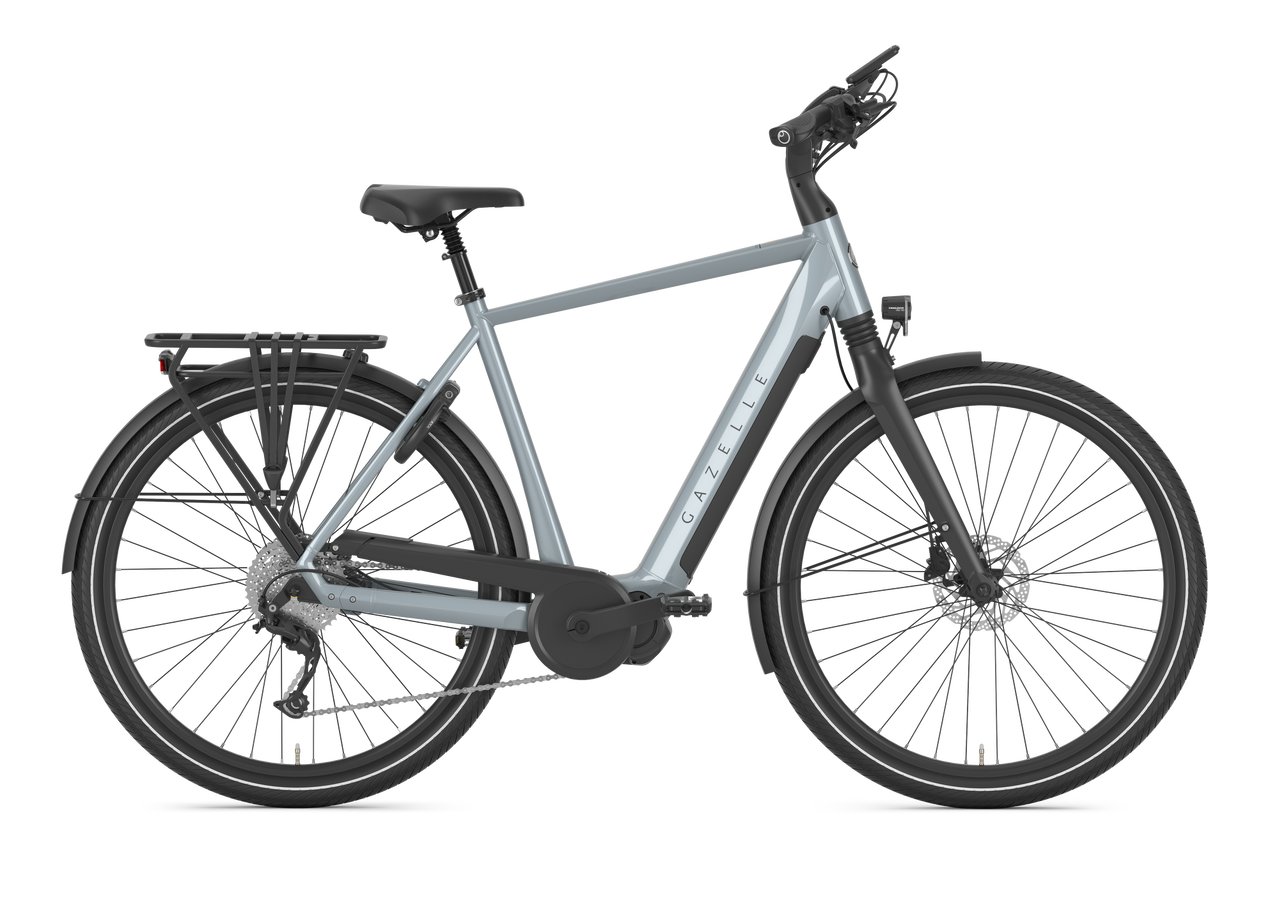

Komfortowa jazda na rowerze elektrycznym, dzięki mocnemu, centralnemu silnikowi Shimano Steps. Dzięki niskiemu położeniu silnika, każda Gazelle Hybrid z centralnym silnikiem Steps ma doskonałą zwrotność i łatwość manewrowania. Potężny silnik Shimano Steps jest idealny do codziennych oraz dalekich podróży. W elektrycznym rowerze Gazelle z centralnie umiejscowionym silnikiem Steps możesz wybierać spośród dwóch różnych akumulatorów: Gold i Platinium. Rower elektryczny z Shimano Steps jest standardowo wyposażony w akumulator Gold.
Rama, widelec, bagażnik | |
Cabels integrated | Yes |
Widelec | aluminium, wewnętrznie amortyzowany, lekki |
Typ zawieszenia widelca | amortyzator centralny |
Rama | Sporty and stable aluminium frame with 70.5⁰ head tube angle and 71.5⁰ saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (630 Wh) |
Materiał ramy | aluminium |
Tylny bagażnik | Aluminum MIK HD system carrier |
Size | S |
Travel Fork | 40 mm |
Oświetlenie | |
Front light lux | 50 |
Front light powersource | Battery |
Tylne światło | Zasilanie baterii LED, włączanie / wyłączanie za pomocą wyświetlacza |
Rear light powersource | Battery |
Typ tylnego światła | Axa Blueline |
Inne | |
Carrier MIK system | Yes |
Łańcuch | KMC extra strong, special for e-bike |
Osłona łańcucha | aluminum |
Coat protector | No |
Stojak | Ursus Mooi |
Kickstand type | drop-down rear stand |
Rodzaj blokady | Axa Block XXL |
Blokada | Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft |
Lock safety level | Certyfikat ART ** |
Produkt | |
Kod koloru 1 | 874 - brewster grey |
E-Bike | Yes |
EAN | - |
Rodzaj ramy | Low-step |
Rodzaj produktu | Trekking |
Sitting position | Upright |
Siodło | |
Adjustable stem | Yes |
Sztyca | amortyzowany |
Seatpost suspension | Yes |
Sterowanie | |
Grip type | Ergon GC10 |
Chwyty | Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands |
Kierownica | Aluminium, slightly curved model |
Wspornik kierownicy | Przełącznik Gazelle, ręcznie regulowany bezstopniowo |
System | |
Battery replaceable | Yes |
Typ Baterii | Li-ion |
Model wyświetlacza | Shimano Steps LCD center |
Display control unit | No |
Lokalizacja wyświetlacza | wyświetlacz centralny |
Typ wyświetlacza | LCD |
Ebike charger description | 2 Ah |
Opis systemu roweru elektrycznego | The Shimano E6100 motor is a very versatile motor that you can use in any terrain. With 60 Nm torque you can easily handle both flat and hilly terrains. What's more, at 2.88 kg this motor is very light. |
Nazwa systemu Ebike | Shimano E6100 60Nm (GAZELLE) |
Krótki opis systemu Ebike | Shimano STEPS |
Elcykelanvändning | płaski i pagórkowaty teren |
Lokalizacja silnika | mid-drive motor |
Model silnika | Shimano STEPS E6100 (60 Nm) |
Maksymalna prędkość (km / h) | 25 km/h |
Maximalt vridmoment | 60 Nm |
Walk assist | Yes |
Skrzynia biegów i hamulec | |
Kod układu hamulcowego | S10 |
Mechanizm korbowy | aluminum |
Disc brake rotor size front | 180 mm |
Disc brake rotor size rear | 160 mm |
Drivetrain | Łańcuch |
Front chainwheel | 38 |
Rodzaj przekładni | przerzutka |
Rear chainwheel | 11-42 |
Przerzutka tylna | Shimano Deore |
Koła i opony | |
Błotnik | aluminum |
Felgi | Mach1 650, Double-walled aluminium for extra strong and efficient cycling performance |
Szprychy | Stal nierdzewna, bardzo wytrzymałe |
Tire Size ETRTO | 50-622 |
Tires puncture resistant | Yes |
